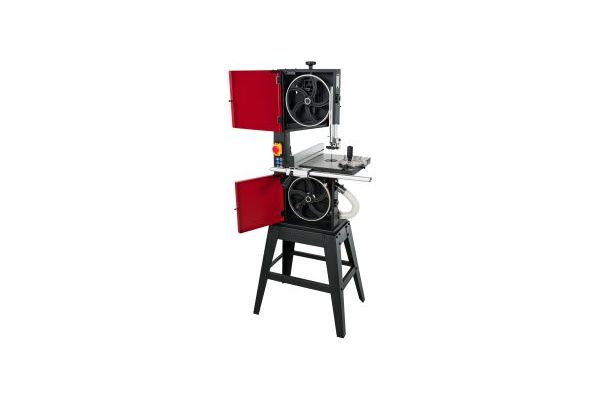

Pegas Precision Scroll Bandsaw DUAL 13″ with Floor Stand

Scroll Bandsaw Mode

In scroll mode, the SRP13 DUAL is equipped with some of the finest and most precisely manufactured scroll bandsaw blades available. Combined with the specially developed Pegas precision guiding system, ultra-thin blades from 1.02 mm to 3 mm are guided perfectly using grooved roller bearings matched to each blade size.

This advanced system prevents blade twist and delivers outstanding control, enabling extremely delicate cuts, complex shapes, and exceptionally tight radii of under 2 mm—performance normally associated only with traditional scroll saws, but with far greater cutting capacity.

Standard Bandsaw Mode

When fitted with the included standard blade guide, the machine accepts bandsaw blades from 6 mm up to 16 mm wide. These wider, more robust blades are ideal for straight cuts, rip cuts, and heavier woodworking tasks.

The solid cast iron table tilts from -5° to +45° and features a 19 mm T-slot for the supplied mitre gauge, adjustable from -60° to +60°. An aluminium-profile rip fence with integrated magnifying glass ensures accurate and easy-to-read mm/inch measurements.

Key Features & Benefits

• Heavy-duty sheet steel construction, including both doors

• Door-mounted safety switches prevent operation when open

• No-volt release on/off switch to avoid accidental start-up

• Two blade speeds for optimal cutting performance

• Precision-balanced, rubber-coated bandwheels

• Substantial 70 kg weight for excellent stability and smooth, vibration-free running

Specifications

• Blade length: 2300 mm

• Blade speeds: 360 / 720 m/min

• Blade width range: 1 – 16 mm

• Maximum cutting height: 175 mm

• Maximum cutting width (with fence): 245 mm

• Maximum cutting width (without fence): 310 mm

• Wheel diameter: 320 mm

• Table size: 500 × 400 mm

• Table tilt: -5° to +45°

• Table height: 1035 mm

• Hose connection: Ø 100 mm

• Motor voltage: 230 V / 50 Hz

• Power input: 750 W

• Overall dimensions (L × W × H): 1625 × 890 × 700 mm (including base frame)

• Weight: 70 kg

Included Accessories

• Scroll bandsaw blade No. 9 (2305 × 1.34 × 0.44 × 2.43 mm)

• Scroll bandsaw blade No. 12 (2305 × 2 × 0.5 × 2.85 mm)

• Two precision bearing guides with grooved scroll blade support

• 12.5 mm standard bandsaw blade

• Two table inserts for fretwork

• Aluminium rip fence

• Mitre gauge

• Sheet steel base frame

• Safety push stick

• Operating tools

Built for Advanced Scroll Work

The Pegas Scroll Bandsaw is primarily engineered for detailed scroll cutting, while still offering the flexibility to perform straight cuts and light resawing. Compared to a traditional scroll saw, it provides significantly greater cutting depth, a larger throat capacity, and a more spacious worktable. The dedicated scroll guide system makes large-scale and intricate scroll projects both precise and effortless.

With a generous 175 mm depth of cut and 310 mm throat capacity, this floor-standing machine is ideal for larger workshops and professional environments.

Looking for a more compact option? The Pegas DUAL 10″ offers a smaller cutting depth with a similar specification and the same renowned build quality, while requiring less workshop space.
